Descrição
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,6 x USB 2.0,3 x Audio Jacks,PS/2
Battery Included: No
Brand Name: SOYO
Chipset: h55
Chipset Manufacturer: Intel
High-concerned chemical: None
Max LAN Speed: 1000Mbps
Maximum Ram Capacity: 128 GB
Number Of Memory Slots: 4
Number of M.2: 2
Number of PCI: 1
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of PCIe x 4: 1
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,AAFP Connector,Chassis(SYS) Fan Connector(s),8-pin +12V Power Connector,Speaker Connector,USB 2.0 Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: PCI-Express X1
Processor compatibility: Intel Xeon,Intel Xeon E Series
RAID Supported: Yes
SATA RAID: 0
Socket Type: LGA 2011-3
Special Features: NONE
Storage Interface Type: SATA 2,M.2 (NVMe),M.2 (SATA)
Support Memory Type: DDR4 ECC
Support USB Type: USB 2.0
Supports M.2 SSD: 2242,2280
Usage Scenario: Enthusiast & Overclocking,Gaming,Audio & Video,Household,Office,Design,Scientific Computing,Video Rendering,MaxCompute
With CPU: Yes
This motherboard only supports MSI's TPM 2.0 module.
Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully.
Differences between packages

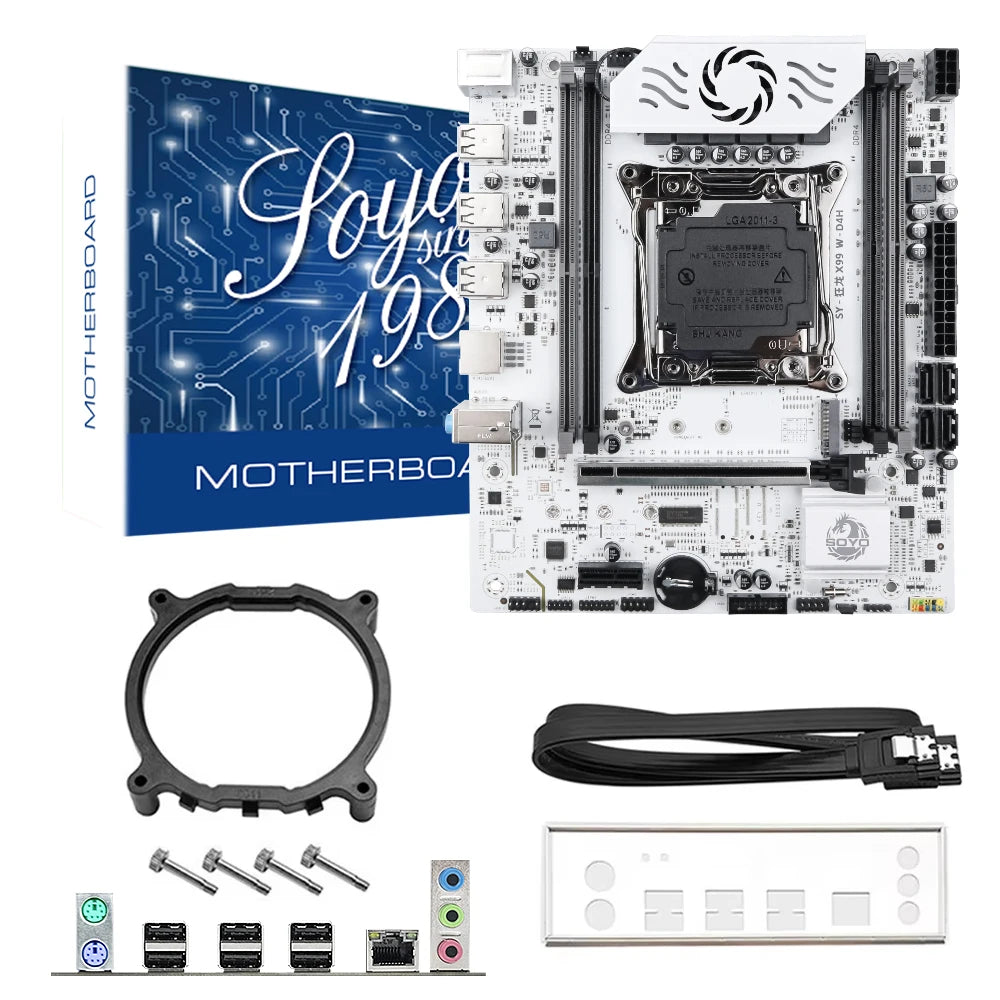

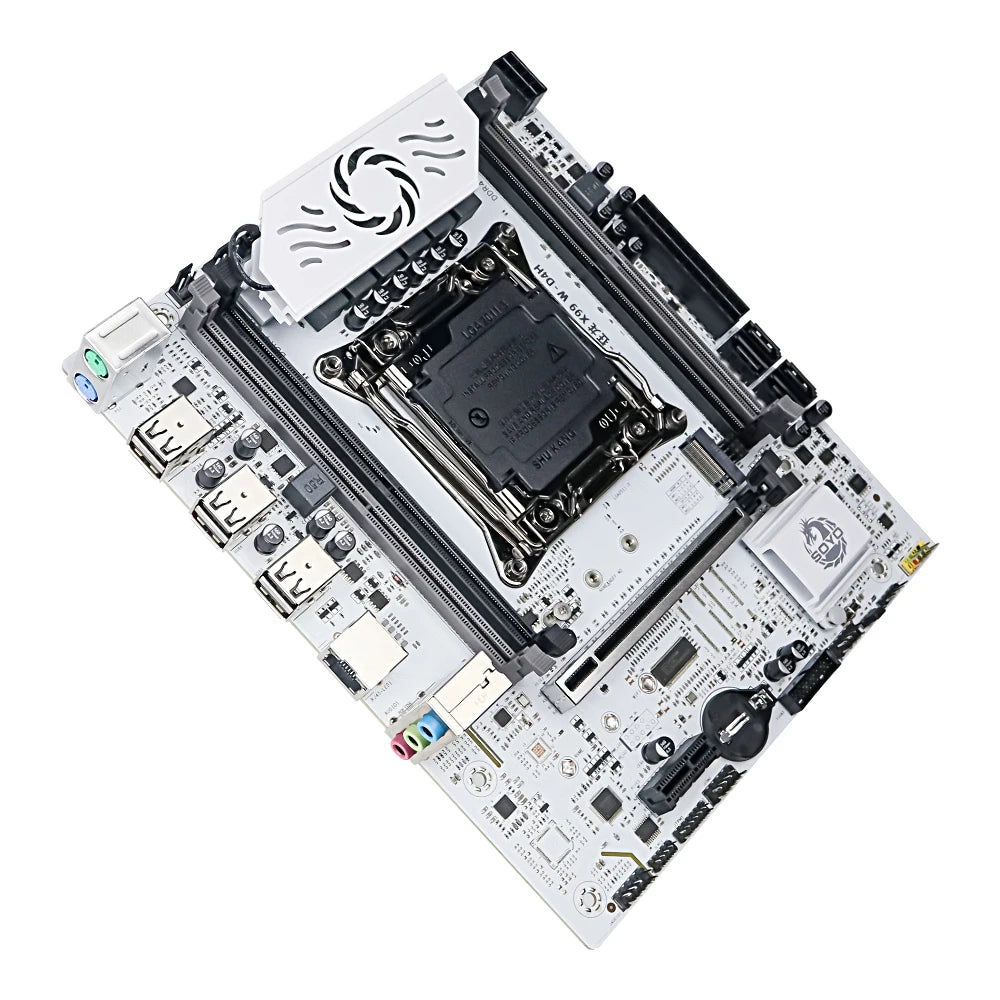

Motherboards: 1*SY-X99 D4 motherboard
Motherboard+CPU: SY-X99 D4+E5 2682 V4 CPU
Motherboard+CPU+RAM: SY-X99 D4+E5 2682 V4 CPU*DDR4 8G*1 (8G)
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order
CPU：
Processor Series: Intel Xeon
Model number: E5 2680 V4
Processor Speed: 2.4GHz
Maximum core frequency: 3.3GHz
Processor Socket: LGA2011-3
Process: 14nm
Memory type: DDR4 1600/1866/2133/2400
The number of CPU cores: 14
The number of threads: 28
L3 cache size (MB): 35 MB
Wattage: 120 Watts
cpu will be final double tested before shipping
In this kit (motherboard+CPU+RAM), motherboard is brand new, CPU and RAM is used(not new). We fully combos testing before delivery. and make sure the whole set can works perfectly. Since CPU and RAM have used marks on it, please don't place order if you mind. (The old and new level of RAM+CPU cannot be controlled, and it is sent randomly.)
🔥 Key Features
⚡ Supports Intel Xeon E5 V3/V4 Processors
-
LGA2011-V3 socket – compatible with E5-2629V3, 2666V3, 2673V3, 2676V3, 2678V3, 2696V3, 2684V4, 2696V4 and more
-
Multi-core, multi-thread design ideal for rendering, virtualization, and server workloads
-
Excellent performance-to-cost ratio for building high-value workstations and servers
💾 Large DDR4 Memory Capacity
-
4 × DDR4 DIMM slots – dual-channel support, up to 2400MHz
-
Maximum 128GB capacity, 32GB per slot
-
Gray slots are the primary channel; black slots are the secondary channel for easy identification
💿 Dual-Mode M.2 Slot + SATA Expansion
-
1 × M.2 slot – supports NVMe 3.0 x4 / NGFF 2.0 mode, switchable via jumper
-
4 × SATA 2.0 ports – for traditional HDDs and SSDs

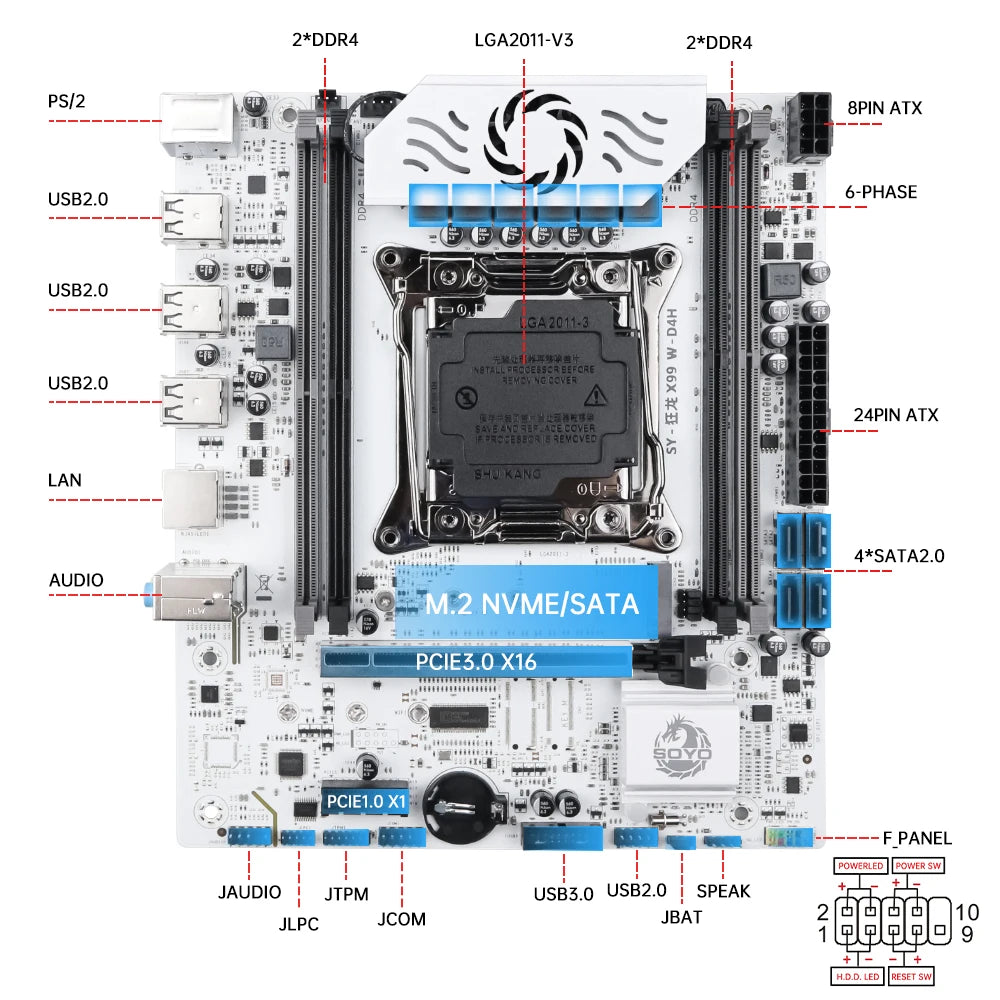

🔌 Rich I/O – Comprehensive Connectivity
-

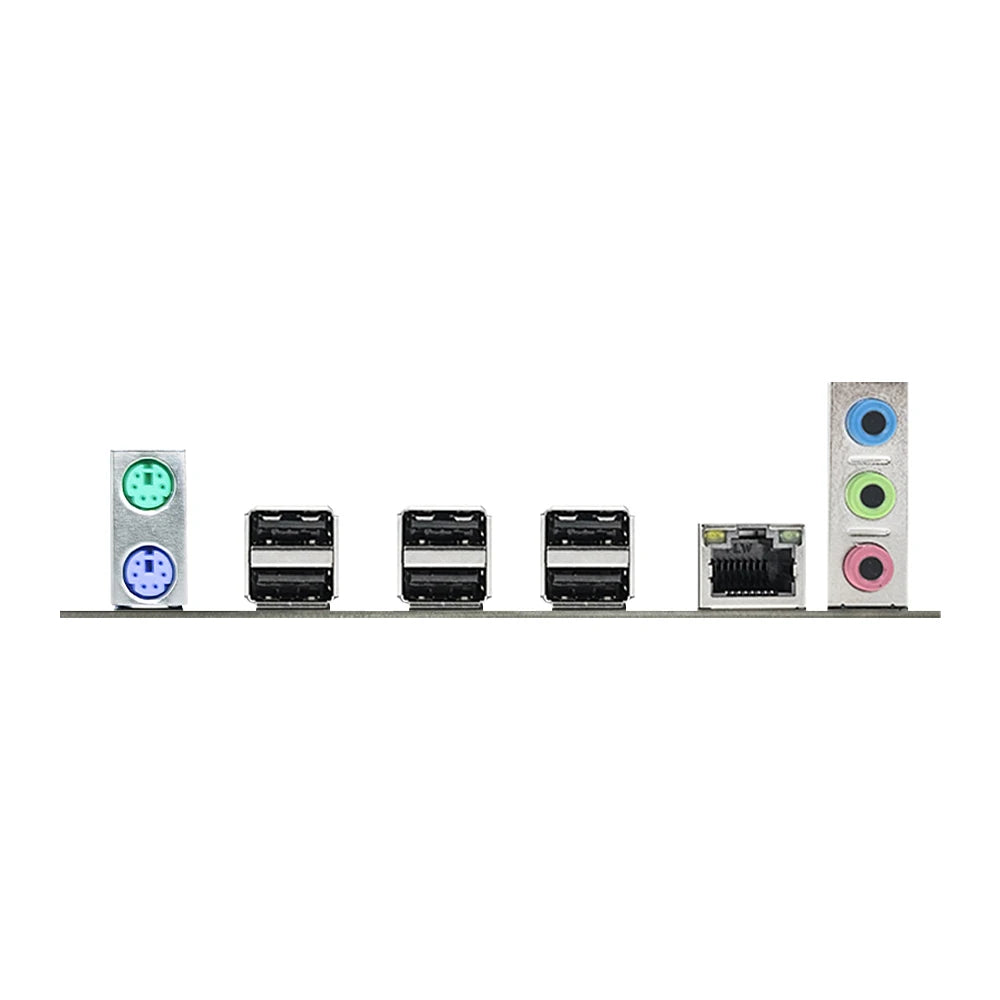

Rear I/O: 6 × USB 2.0, PS/2 keyboard/mouse, Gigabit Ethernet, 3 × audio jacks
-
Internal headers: Expandable 4 × USB 2.0, COM (serial) port, front panel audio, TPM module
-
PCIe expansion: 1 × PCIe X16 3.0 (from CPU), 1 × PCIe X1 1.0 (from PCH)
🌐 Gigabit Ethernet with Advanced Networking Features
-
Realtek Gigabit LAN controller – stable and reliable
-
Supports PXE network boot and Wake-on-LAN (WOL)
-
Perfect for diskless systems, remote management, and server applications
🛠️ Professional-Grade Headers & Features
-
1 × TPM 14-pin header (compatible with MSI 14-pin TPM modules)
-
1 × COM header (RS232 mode)
-
CPU fan, system fan, and MOS fan headers for precise cooling control
-
Speaker (Speak) and diagnostic card (JLPC) headers for debugging
💪 Stable Power Delivery
-
24-pin + 8-pin ATX power connectors – ensures stable power under heavy loads
-
Idle power consumption: 130–170W; Full load: 300–350W (including discrete GPU)
🪟 Multi-OS Support
-
Fully compatible with Windows 7, Windows 10, Windows 11 and Linux distributions
-
Meet your preferred operating system needs
📊 Detailed Specifications
🎯 Ideal Use Cases
-
High-Performance Workstations: 3D rendering, video editing, engineering design, scientific computing
-
Servers & Virtualization: Multi-core processors + 128GB memory, ideal for ESXi, Proxmox, Docker, etc.
-
Multi-Tasking & Game Instances: Powerful multi-threading capability for running multiple game clients or applications
-
Home Lab & Development: TPM, COM, diagnostic headers for experimentation and debugging
-
NAS / File Server: 4 × SATA + M.2 storage for file sharing and backups
-
Diskless Systems / Cyber Cafés: PXE boot support for easy network deployment
Note:
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3)For tax issues, please make sure that you can solve the customs clearance problem yourself, if you can't, we don't recommend that you buy goods in our store. We are not responsible for customs duties. Thank you for your understanding.
(4) Install the memory. All RAM needs to be installed in slot #1 and slot #2 (Grey slots) first. The motherboard's Black RAM slots (#3/#4) will not work alone. The memory needs to be inserted into the same color slots
# # #Because there are too many computer accessories in the market, it is likely that there are some niche brands, poor quality or ES/QS versions of CPU, RAM, M.2 SSD or other accessories may appear incompatible with the motherboard. You can confirm with our customer service before purchasing. If there is no confirmation before purchase, then incompatibility will occur when you receive the motherboard and we will not accept refunds. When you purchase this link, we assume that you have read and understood the situation ation . Please note please do not buy!
